Stainless Steel NRV Valve

Check SS 304 Nrv Valve Price List, Instrumentation Nrv Valve manufacturer and exporter

Also referred to as a check valve, the Nrv Valve is a kind of fitting that permits fluid to flow through it in only one direction. Various types of Ss316 Non Return Valve is used in a wide variety of applications. SS 304 Non Return Valve is frequently a part of common household items. Although the Non Return Valve Material is available in a wide range of sizes, metals and costs, SS Non Return Valve is generally very small, simple, or inexpensive. The 1/2 Stainless Steel Non Return Valve work automatically.

In fact, these valves are not worked upon by a person or any external control. Hence, most Nrv Valve Types do not have any valve handle or valve stem. The bodies of most of these valves constitute of plastic or metal for e.g. Stainless Steel Non Return Valve. If you are looking to purchase valves from the most trusted Non Return Valve Manufacturers In India Check here to learn more about the SS Non Return Valve Price List.

SS316 Non Return Valve also known as Check or Stop Valve

Os-Lok is your superior alternative to Swagelok & Parker A-lok. Similar to Parker, Os-Lok Stainless Steel Non Return Valve are 100% leak free & used for oil, water, air, and inert gas.

SS NRV Valve sizes

Non Return Check Valves

Size: 1/2" to 4" (DN25-DN200)
Thread: NPT PT BSPP G
Connection : Welded, Socket, Clamped, Flanged, Threaded
Pressure Class: PN10/ 16

Non Return Check Valves Price List

Check Valve, 1/4", Single, Inline Swing, 316 Stainless Steel, FNPT x FNPT
$81.00 / each
Check Valve, 3/8", Single, Inline Swing, 316 Stainless Steel, FNPT x FNPT
$85.50 / each
Check Valve, 1/2", Single, Inline Swing, 316 Stainless Steel, FNPT x FNPT
$84.50 / each
Check Valve, 3/4", Single, Inline Swing, 316 Stainless Steel, FNPT x FNPT
$108.50 / each
Check Valve, 1-1/4", Single, Inline Swing, 316 Stainless Steel, FNPT x FNPT
$130.00 / each

Stainless Steel Non Return Check Valves Specification

Media	Oil, Gas & Water
Temperature of Media	Medium Temperature
Working Pressure accordance to ANSI/ASME B16.34	1000 - 10000psi
Temperature accordance to	20°C - +150°C
Operation Way	Manual, Electric actuator, Pneumatic
Standard	3A/ ISO/ DIN/ SMS / ASTM / JIS
Brand Name	OS-LOK
Packaging Details	PVC package, wooden case or as per customer's requirement.
Leakage rate	Soft Seal: zero leakage, 100% Leak test Hard Seal ≤ Rated Flow 10-5
Working pressure	3000 psig (206 bar)
Seal ring material	PPL, PTFE, PPL Soft Graphite
Manufacturing Process	Forged bar stock
OEM service	Yes
Connection	Single Ferrule Two Ferrule (Double Ferrule) Twin Ferrule Thread
Thread Type	BSPP C.61 4-Bolt Flange C.61 Combo 4B + Split C.61 Split Flange C.62 4-Bolt Flange C.62 Combo 4B + Split C.62 Split Flange ISO 6149 NPT SAE
Flow Rate	.93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv
Applicable Standard	Design & Manufacture : BS 1868 Face to Face according to : ASME B16.10 Flange Dimensions as per: ASME B16.5 Pressure & Temperature : ASME B16.34 Test & Inspection accordance to : API 6D / API 598 Visual Inspection accordance to : MSS SP-55 Marking accordance to : MSS SP-25
Approvals	MSS SP-110 API-598 ANSI B1.20.1 ANSI B16.11 NACE Certified ANSI B16.34 API 607 Fire Safe
We also stock & supply	Swagelok Parker DK LOK Hamlet Letlok DUOLOK GYROLOK TYLOK BILOK
Uses & application	Dairy Food & Beverages Pharmacy Cosmetic Chemical Industry and many more.
Our representatives	We have our sales representatives in folowing locations: Philippines Malaysia UAE Saudi Arabia Singapore Korea Germany Indonesia Qatar UK Vietnam Australia USA
Port	Mumbai, India

Types of Stainless Steel Instrumentation Non Return Valves

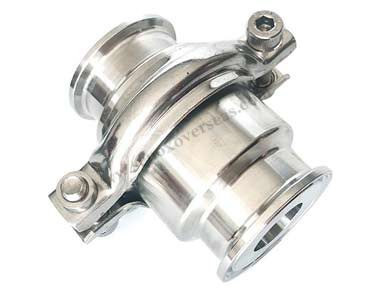

Stainless Steel Sanitary Non Return Valve

Stainless Steel Sanitary Non Return Valve

Stainless Steel Sanitary Non Return nrv valve Check Valve
304 316L Stainless Steel Sanitary Spring Non Return Check Valve
Swagelok Parker Type Instrumentation Check Valves 6000 Psig 316 Stainless Steel

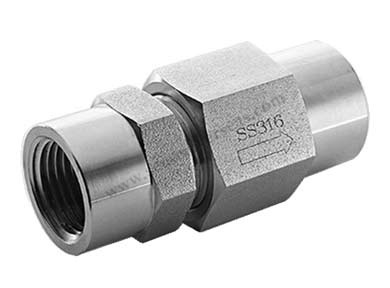

High pressure non return check valve

High pressure non return check valve

Stainless Steel 1/4"-2"NPT Male Thread Hydraulic Non Return Valve
Stainless Steel High Pressure non return valve / check valve with tube fittings
High Pressure Stainless Steel Non Return Valve & Adjustable Small Check Valve

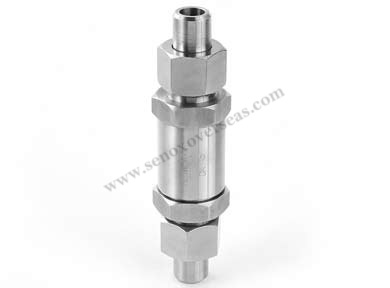

Stainless Steel Hydraulic Non Return Valve

Stainless Steel Hydraulic Non Return Valve

SS316 Hydraulic 1/4" NPT Female Threaded Non Return Check Valve
DN200 PN40 Stainless Steel Non Return Lift Wafer Check Valve
200WOG 3/4 inch Stainless Steel Spring Loaded Vertical Lift Type Non Return Check Valve

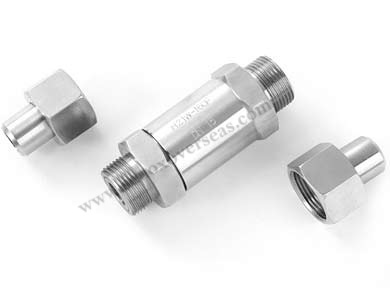

Swing type stainless steel non return check valve

Swing type stainless steel non return check valve

Stainless Steel Non Return Horizontal Check Valve
KAM/CV Series female 1/4 high pressure SS304 stainless steel One Way Pneumatic check Non return control Valve
300LBS High Pressure SS Instrument non return check valve

Stainless Steel NRV Valve grades

GRADE / ALLOY	UNS Number	FORGING	CASTING	BARSTOCK
304	S30400	A182 F304	A351 CF8	A276 or A479 304
304L	S30403	A182 F304L	A351 CF3	A276 or A479 304L
316	S31600	A182 F316	A351 CF8M	A276 or A479 316
316L	S31603	A182 F316L	A351 CF3M	A276 or A479 316L
317L	S31703	A182 F317L	A351 CG8M	A276 or A479 317L
321	S32100	A182 F321	-	A276 or A479 321
347	S34700	A182 F347	A351 CF8C	A276 or A479 347
17-4PH	S17400	A564 630	-	-
254SMO	S31254	A182 F44	A351 CK3MCuN	A182 F44
904L	N08904	B625 N08904	-	B649 N08904
