Brass Ball Valves
Yellow Brass NPT 3 Way Instrumentation Ball Valve for Air / Water Service lines
Similar to most alloy grades the Brass Ball Valves can be alloyed with several elements to enhance its value. For instance, generally, the Heavy Duty Brass Ball Valves are alloyed with elements such as iron, manganese and aluminium. Adding tin to the alloy of Brass Right Angle Ball Valves makes the alloy resistant to seawater or brine. Hence, they can be used for marine applications. On the other hand, the addition of aluminium to the alloy of Brass Forged Ball Valves improves not only the corrosion resistance properties but its tensile strength as well. When alloyed with aluminium, the Brass Plumbing Ball Valves forms a self-healing, transparent, hard and thin layer on its surface, thus aiding the alloy with its corrosion resistance. Brass Mini Ball Valves also have a good electrical and thermal conductivities. Since brass is considered to be a naturally hygienic alloy, Brass Flanged Ball Valves could be used in those applications which consider hygiene as an important factor or where the metal is frequently touched or in hygiene sensitive conditions. The Brass Union Ball Valves are also very durable and have a long service life.

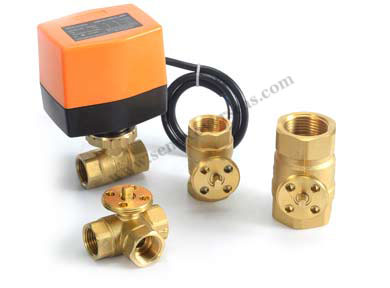

Manufacturer of 1/2 Inch mini brass ball valve & electric motorized DN15 12v 24v brass 2 way 3 way Hydraulic ball valve
Os-Lok is your superior alternative to Swagelok & Parker A-lok. Similar to Parker, Os-Lok Brass Ball Valves are 100% leak free & used for oil, water, air, and inert gas.
Brass Process Control Ball Valve sizes
- Size: 1/2" to 4" (DN25-DN200)
- Thread: NPT PT BSPP G
- Connection : Welded, Socket, Clamped, Flanged, Threaded
- Pressure Class: PN10/ 16
UNS C27200 Brass Ferrule Ball Valve Specification
Low price of Red Brass Pneumatic Float Ball Valve & Brass Female Thread Lockable Ball Valve
| Inner Diameter | Inch | Kvs (m3/h) | Pmax (KPa) | Ps (KPa) | |
|---|---|---|---|---|---|
| 2-way | 12mm | 1/2" | 6.15 | 1000 | 1400 |
| 15mm | 3/4" | 10.5 | 1000 | 1400 | |
| 20mm | 1" | 16.1 | 1000 | 1400 | |
| 3-way | 10mm | 1/2" | 3.95 | 1000 | 1400 |
| 14mm | 3/4" | 6.8 | 1000 | 1400 | |
| 18mm | 1" | 15.8 | 1000 | 1400 |
| Material | Designator |
| Brass | -B |
| Media | Oil, Gas & Water | ||||||
| Temperature of Media | Medium Temperature | ||||||
| Pressure & Temperature Limit accordance to ANSI/ASME B16.34 |
|
||||||
| Operation Way | Manual, Electric actuator, Pneumatic | ||||||
| Standard | 3A/ ISO/ DIN/ SMS / ASTM / JIS | ||||||
| Brand Name | OS-LOK | ||||||
| Packaging Details | PVC package, wooden case or as per customer's requirement. | ||||||
| Leakage rate |
|
||||||
| Working pressure | 3000 psig (206 bar) | ||||||
| Seal ring material | PPL, PTFE, PPL Soft Graphite | ||||||
| Manufacturing Process | Forged bar stock | ||||||
| OEM service | Yes | ||||||
| Connection |
|
||||||
| Thread Type |
|
||||||
| Function |
|
||||||
| Flow Rate | .93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv | ||||||
| Applicable Standard |
|
||||||
|
Approvals |
|
||||||
| Types |
|
||||||
| We also stock & supply |
|
||||||
| Uses & application |
|
||||||
| Our representatives |
We have our sales representatives in folowing locations:
|
||||||
| Port | Mumbai, India | ||||||
Types of ASTM A494 Brass Ball Valves
- 20 x 1/2" - 50 x 11/2" Valogin Nickel Plating 362.5 psi Brass Water PPR Ball Valve
- UL Certification Brass Ball Valve
- Mini A20-T15-B2-C 2-way DN15 1/2" 12v Brass motorized gas ball valve
- Brass Ball Valve & True Union Full 1/2 Brass Ball Valve Custom Valves Types
- HTL BRASS BALL VALVE TYPE 1/2"-4"
- 3 way brass ball valve with handle
- DN15-DN50 3 inch level handle forged brass ball valve
- 230VAC ON/OFF 2 Way 3/4" DN20 Electric Brass Ball Valve Motor Operated Actuator Motorized
- BSP Forged Thread Brass Ball Valve with Handle
- Full Bore Port Npt Thread Brass Gas Ball Valve
- 1/2"*20mm water ppr female thread double union brass ball valve
- 600WOG C37700 Brass Locked Ball Valve with Short Handle
- high quality female Nickel plated brass ball valve
- 1/2 - 2 inch full brass ball valve
- Gas brass ball valve with lever handle for pex pipe
- DN20 Brass Ball Valves
- CW617n Brass Pressure Ball Valve 2 pc
- General Application 1/2 "3/4" 1 "Brass Female thread ball valve

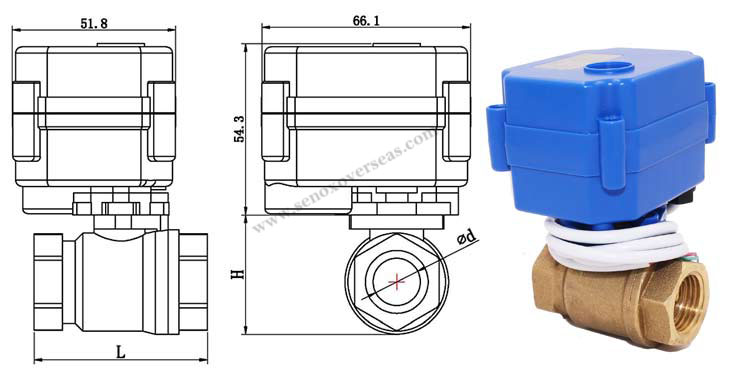

Brass Ball Valves dimensions
| Connection Way | Size Range | d | H | L |
|---|---|---|---|---|
|
Female-Female Thread Full-Port |
DN8 | 8 | 46 | 31 |
| DN15 | 15 | 57 | 38 | |
| DN20 | 20 | 71 | 45 | |
| DN25 | 23.5 | 72 | 49 | |
|
Female-female Thread Reduced Bore |
DN10 | 8 | 46 | 31 |
| DN20 | 15 | 66 | 38 | |
| DN25 | 20 | 72 | 47 | |
| DN32 | 25 | 86 | 60 | |
| Vertical Three-Way | DN15 | 12 | 63 | 49 |
| DN20 | 15 | 66 | 53 | |
|
Female-male Thread |
DN15 | 15 | 63 | 38 |
| DN20 | 15 | 66 | 38 | |
| DN32 | 20 | 76 | 50 | |
| Male-male thread | DN15 | 15 | 68 | 38 |
