Stainless Steel Ball Valve

SS316 Ball Valve & SS 304 Mini Ball Valve manufacturer in India

A Stainless Steel Ball Valve is a kind of quarter-turn valve. The versatile and popular SS304 Ball Valve uses a hollow, perforated and pivoting ball, which in turn is used to control the flow. The 1/2 Inch Stainless Steel Ball Valve is said to be open when the ball's hole is in line with the flow. On the other hand, a Stainless Steel Ball Valve 1 Inch is considered to be closed when the valve has been pivoted 90-degrees by the valve handle. The handle of the Stainless Steel Float Ball Valve lies flat in alignment with the flow when open. When the Stainless Steel 3/8 Ball Valve is closed it is perpendicular thus, making for easy visual confirmation of the valve's open/ close status. Senox Overseas is a PED approved SS Ball Valve manufacturer in India.

View latest SS 316 3 Way Instrumentation Ball Valve & 1/2 Inch SS Float Ball Valve price list

A Stainless Steel 3/4 Ball Valve is considered to be not only durable but they also performing well after many cycles. Furthermore, the reliability of Stainless Steel Mini Ball Valve can be noted as they can be closed off securely even after extended periods of disuse. These qualities make the Stainless Steel 3 Way Ball Valve a good choice for shutoff and control applications. We are one of the leading Stainless Steel Ball Valve Manufacturer In India. To get a reasonably priced component, click on the link for SS 316 Ball Valve Price List.

Os-Lok is your superior alternative to Swagelok & Parker A-lok. Similar to Parker, Os-Lok Stainless Steel Ball Valve are 100% leak free & used for oil, water, air, and inert gas.

Stainless Steel Process Control Ball Valve sizes

Stainless Steel Instrumentation Ball Valve sizes

Size: 1/2" to 4" (DN25-DN200)
Thread: NPT PT BSPP G
Connection : Welded, Socket, Clamped, Flanged, Threaded
Pressure Class: PN10/ 16

Stainless Steel Instrument Ball Valve material

GRADE / ALLOY	UNS Number	FORGING	CASTING	BARSTOCK
304	S30400	A182 F304	A351 CF8	A276 or A479 304
304L	S30403	A182 F304L	A351 CF3	A276 or A479 304L
316	S31600	A182 F316	A351 CF8M	A276 or A479 316
316L	S31603	A182 F316L	A351 CF3M	A276 or A479 316L
317L	S31703	A182 F317L	A351 CG8M	A276 or A479 317L
321	S32100	A182 F321	-	A276 or A479 321
347	S34700	A182 F347	A351 CF8C	A276 or A479 347
17-4PH	S17400	A564 630	-	-
254SMO	S31254	A182 F44	A351 CK3MCuN	A182 F44

A351 CF8M Grade 316 Ferrule Ball Valve Specification

AMEC approved 1/2 inch-4 inch two pcs type stainless steel ball valve female sanitary bspt/ npt thread

Media

Oil, Gas & Water

Temperature of Media

Medium Temperature

Pressure & Temperature Limit accordance to ANSI/ASME B16.34

316 Stainless Steel
Max. Pressure	103,414 barg 1,500, 6,000 bar
Max. Temperature	232 °C (450 °F)
Min. Temperature	-54 °C (-65 °F)

Operation Way

Manual, Electric actuator, Pneumatic

Standard

3A/ ISO/ DIN/ SMS / ASTM / JIS

Brand Name

OS-LOK

Packaging Details

PVC package, wooden case or as per customer's requirement.

Leakage rate

Soft Seal: zero leakage, 100% Leak test
Hard Seal ≤ Rated Flow 10-5

Working pressure

3000 psig (206 bar)

Seal ring material

PPL, PTFE, PPL Soft Graphite

Manufacturing Process

Forged bar stock

OEM service

Yes

Connection

Single Ferrule
Two Ferrule (Double Ferrule)
Twin Ferrule
Thread

Thread Type

BSPP
C.61 4-Bolt Flange
C.61 Combo 4B + Split
C.61 Split Flange
C.62 4-Bolt Flange
C.62 Combo 4B + Split
C.62 Split Flange
ISO 6149
NPT
SAE

Function

2-Way
3-Way
4-Way
5-Way
Diverter
Normally Closed
Normally Open

Flow Rate

.93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv

Applicable Standard

Design & Manufacture : BS 1868
Face to Face according to : ASME B16.10
Flange Dimensions as per: ASME B16.5
Pressure & Temperature : ASME B16.34
Test & Inspection accordance to : API 6D / API 598
Visual Inspection accordance to : MSS SP-55
Marking accordance to : MSS SP-25

Approvals

MSS SP-110
API-598
ANSI B1.20.1
ANSI B16.11
NACE Certified
ANSI B16.34
API 607 Fire Safe

Types

Automatic Stainless Steel Hydraulic Ball Valve
A351 CF8M Grade 316 Compression Double Ferrule Ball Valve
SS316 Instrumentation Female Ball Valve 2500 PSI 3000 PSI
ASTM A182 F304 Instrmentation Hydraulic Ball Valve BKH 6000 PSI
SS304 High Pressure Ball Valve 1''-Inch 400 bar 6000 psi BSP & NPT
ASTM A351 Grade CF8M Stainless Steel Mini Ball Valve Angle Instrument 1/4" OD 6000psi
Compression 1.4408 / ASTM A351 Grade CF8M 2 Way Double Ferrule Ball Valves
ASTM A182 F316 Instrumentation Lockable Female Ball Valve
316 Stainless Steel Swagelok Type One-Piece Instrumentation Ball Valves
Stainless Steel 1.4408 High Pressure Mini Gas 5 way 1/8" 1/4" 1/2" Female NPT
Low Pressure A351 CF8 Stainless Steel Pneumatic Ball Valve

We also stock & supply

Swagelok
DK LOK
BILOK
GYROLOK
TYLOK
Parker
Hamlet Letlok
DUOLOK

Uses & application

Dairy
Food & Beverages
Pharmacy
Cosmetic
Chemical Industry and many more.

Our representatives

We have our sales representatives in folowing locations:

Malaysia
Korea
Germany
Philippines
Qatar
Saudi Arabia
Singapore
UAE
Indonesia
Vietnam
UK
USA
Australia

Port

Mumbai, India

ASTM A182 F304/316 Ball Valves Pressure Rating

NPS	PSIG
1/2 – 1-1/2	1000 PSIG (69 BARG)
2	800 PSIG (55 BARG)
3	600 PSIG (41 BARG)
4-5	500 PSIG (34 BARG)
6	300 PSIG (21 BARG)

Types of ASTM A182 F304 Ball Valves

Stainless Steel High Pressure Ball Valves

high precision casting investment Custom stainless steel ball valve
SUS 304 6000 psi NPT-1/4 High pressure ball valve stainless steel
High pressure stainless steel 316 Ball Valve

A351 CF8M Grade 316 Low-Pressure Ball Valves

500bar BKH 1/4 NPT Forged Stainless Steel High Pressure Ball Valve
high pressure MAS-H83 stainless steel 3 way natural gas ball valve
304 stainless steel DN20 PN16 3 way ball valve

SS316 Instrumentation Ball Valves

OD End 3000PSI high pressure swagelok type 3 way ball valve stainless steel
1 inch 2-pc stainless steel npt female threaded ball valve
1 1/2 inch stainless steel 3pc full port cf8 ss 316 ball valve with ISO 5211 mounting pad

ASTM A182 F304 Hydraulic Ball Valves</p>

Custom Stainless Ball Valves Handle Type Floating Stainless Steel Ball Valve
24 V DC wafer type High pressure double flange motorized ball valves stainless steel
OS-LOK Stainless Steel Air Operated Water Oil Steam Powder Flow Control Ball Valve

SS304 Compression Ball Valves

1/4"-1/2" Male Female Instrument Mini Ball Valve High Pressure Stainless Steel Instrumentation Valve
Stainless steel 316/316L PTFE PFA Instrumentation Female Ball Valve 2500 PSI 3000 PSI
High pressure PN64 sanitary miniature ball valve stainless steel

ASTM A351 Grade CF8M Stainless Steel Flow Control Ball Valves

Stainless steel SS304 high pressure/ temperature 2 way ball valve 1/8" 1/4" 3/8" 1/2" 3/4" 1" inch female thread
SS304 stainless steel 2pcs ball valve PTFE seat
CF8M female sanitary thread ball valve bsp thread 1/2 inch

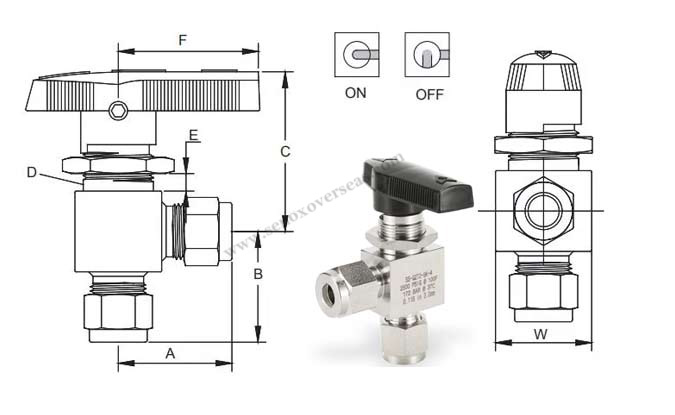

Two-way angle-type valve with ferrule

End Connection Size		Orifice		A
(in)	(mm)	(in)	(mm)	(in)	(mm)
1/8	3.17	0.09	2.4	1.01	25.5
3/16	4.76	0.13	3.2	1.1	28
1/4	6.35	0.19	4.8	1.2	30
3/8	9.52	0.28	7.1	1.45	36.5
1/2	12.7	0.41	10.3	1.74	44.2
0.12	3	0.09	2.4	1.01	25.5
0.24	6	0.19	4.8	1.2	30
0.31	8	0.19	4.8	1.23	31.2
0.39	10	0.28	7.1	1.45	36.5
0.47	12	0.41	10.3	1.74	44.2

B		C		D
(in)	(mm)	(in)	(mm)	(in)	(mm)
1.01	25.5	1.36	34.5	0.59	15.1
1.1	28	1.36	34.5	0.59	15.1
1.2	30	1.47	37.3	0.78	19.8
1.45	36.5	2.07	52.5	1.13	28.7
1.74	44.2	2.44	62	1.5	38.1
1.01	25.5	1.36	34.5	0.59	15.1
1.2	30	1.47	37.3	0.59	15.1
1.23	31.2	1.47	37.3	0.78	19.8
1.45	36.5	2.07	52.5	1.13	28.7
1.74	44.2	2.44	62	1.5	38.1

E		W		F		Cv
(in)	(mm)	(in)	(mm)	(in)	(mm)	Cv
1/4	6.4	1.26	32	0.58	14.7	0.15
1/4	6.4	1.26	32	0.58	14.7	0.35
1/4	6.4	1.26	32	0.78	19.8	0.9
3/8	9.7	1.5	38.1	1.12	28.5	2
3/8	9.7	2.36	60	1.5	38	4.6
1/4	6.4	1.26	32	0.58	14.7	0.15
1/4	6.4	1.26	32	0.78	19.8	0.9
1/4	9.7	1.5	38.1	0.78	19.8	0.9
3/8	9.7	1.7	43	1.12	28.5	2
3/8	9.7	2.36	60	1.5	38	4.6
