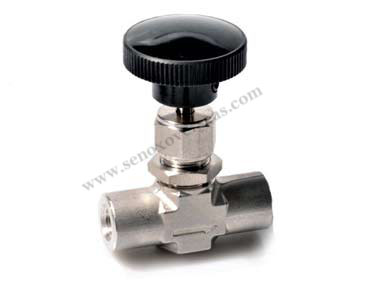

Stainless Steel Needle Valve
Manufacturer of SS 304 Needle Valve in India
A Stainless Steel Compression Needle Valve is a kind of valve constructed with a small port and a needle shaped threaded plunger. The Needle Valve gets its name from the needle shaped plunger. An advantage of the 1/2 Inch Stainless Steel Needle Valve is that it permits precise regulation of flow. Albeit the 1/4 Stainless Steel Needle Valve is only capable of relatively low flow rates. The flow can be controlled and regulated by the Ss-1rs4 Needle Valve with the use of a spindle.
Check online price of SS316 Needle Valve & Parker Instrumentation Needle Valves
A SS 304 Needle Valve has a comparable small orifice with a long, tapered seat. In addition, the Ss-1rs6 Needle Valve also has a needle-shaped plunger at the end of a screw. The plunger used in the Stainless Steel Integral Bonnet Needle Valve exactly fits the seat. A versatile and popular alloy, the Stainless Steel Needle Valve, depending on the grade used will offer excellent to moderate corrosion resistance properties. Therefore the Sanitary Needle Valve is used in the Sanitary connection. In fact, they are specifically recommended by most Needle Valve Manufacturers as the Needle Valve SS316 used in the processing of food and beverages aren’t easily corroded by the chemicals present in food. It is not easy to tell if the Hydraulic Needle Valve is shut off or open, unlike ball valves.
Os-Lok is your superior alternative to Swagelok & Parker A-lok. Similar to Parker, Os-Lok Stainless Steel Needle Valve are 100% leak free & used for oil, water, air, and inert gas.

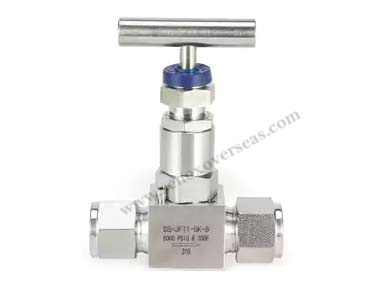

SS Flow Control Needle Valve sizes
- Size: 1/2" to 4" (DN25-DN200)
- Thread: NPT PT BSPP G
- Connection : Welded, Socket, Clamped, Flanged, Threaded
- Pressure Class: 3000PSI, 5000PSI
SS Instrument Needle Valve grades
| GRADE / ALLOY | UNS Number | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| 22% Duplex Stainless Steel | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
Stainless Steel Female Thread Needle Valve Specification
Buy 1/8 inch Stainless steel integral bonnet needle valve & Compression Needle Valve at factory price ex Mumbai
| Media | Oil, Gas & Water |
| Temperature of Media | Medium Temperature |
| Operation Way | Manual, Electric actuator, Pneumatic |
| Standard | 3A/ ISO/ DIN/ SMS / ASTM / JIS |
| Brand Name | OS-LOK |
| Packaging Details | PVC package, wooden case or as per customer's requirement. |
| Leakage rate |
|
| Working pressure | 3000 psig (206 bar) |
| Seal ring material | PPL, PTFE, PPL Soft Graphite |
| Manufacturing Process | Forged bar stock |
| OEM service | Yes |
| Connection |
|
| Thread Type |
|
| Function |
|
| Flow Rate | .93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv |
| Applicable Standard |
|
|
Approvals |
|
| We also stock & supply |
|
| Uses & application |
|
| Our representatives |
We have our sales representatives in folowing locations:
|
| Port | Mumbai, India |
Types of Male Female Needle Valve
- Stainless Steel Female Thread Needle Valve/ Integral Bonnet Needle Valve

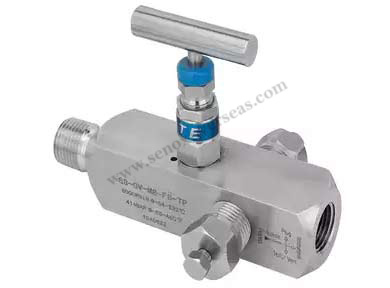

- Stainless Steel High Pressure Gauge Needle Valve
- Stainless Steel 6000PSI Female Integral Thread Forged Needle Valve
- Stainless steel Bar stock needle valve
- High pressure Swagelok type stainless steel needle valve
- Stainless Steel 304 2PC Floating Ball Valve 1000WOG Threaded Ends

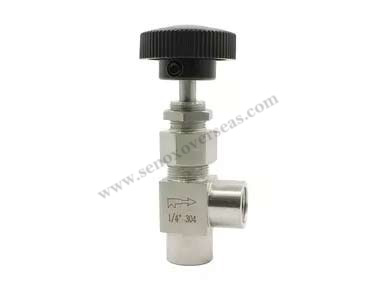

- Stainless steel Angle / L-type Flow Control Valve

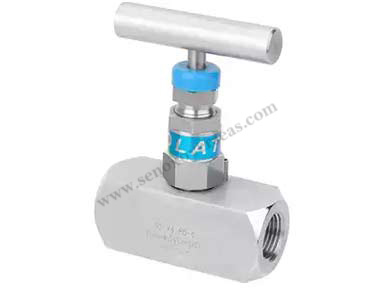

- 6000psi 1/2 Npt Thread Female Stainless Steel 316 Needle Valve
- High vacuum refrigerant forged body brass female 1/2 1/4 inch npt ss316 needle valve
- Male female BSP Thread stainless steel 304 needle valve 1/4 pn63
- SS316L 1/2" NPT Female Male Thread 10000PSI Oil and Gas Needle Valve
- Stainless Steel High pressure Needle valve for liquid gas
- SS304 SS316 female threaded needle valve
- Straight Needle Valve with Ferrule Screwed Bonnet Double Ferrule Tube Ends
- Swagelok Type 10000 6000 Psi 1/2 1/4 inch female NPT SS316 needle valve

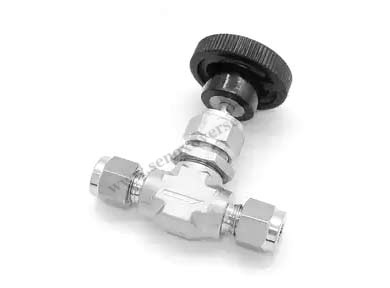

- 3000 psi Stainless Steel Hydraulic Water Needle Valve
- SS 316 General Hydraulic 3/4 inch Control Needle Valves
- High pressure J23W-160P SS304 welded needle valve

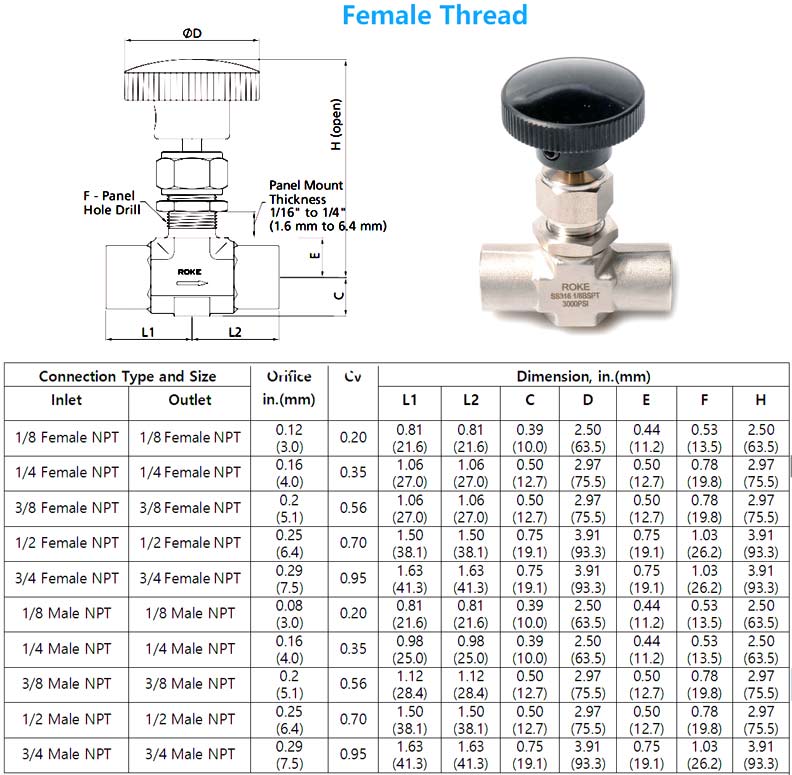

Stainless Steel Needle Valve dimensions
