Monel Valves
Manufacturer of Manifold Monel Valves in accordance to A494 M35-1
Monel Valves is a term that is synonymous with corrosion resistance. While both Monel 400 Valves and Monel K500 Valves have similar chemistry, the slight modification makes them vary. UNS N04400 Gate Valves exhibits good resistant to seawater, brine solution and steam at high temperatures. In addition, Monel 400 Manifold Valves are resistant to salt and caustic solutions as well. Moreover, the Monel Din 2.4375 Butterfly Valves exhibit superior resistance to alkalis.
While the mechanical properties of K500 Monel ASME B 16.25 Fugitive Emission Valves are similar to Alloy 400 Pressure Seal Valves, the addition of both titanium and aluminium in the formers alloy gives the alloy increased tensile strength properties and hardness as well. Since the Api 598/Bs En 12266-1 Monel Oxygen Services Valves does not get corroded via oxidation, these valves have alloys like Monel used in its production. Related to pinch valves the Jis Nw 4400 Monel Diaphragm Valves tend to be a flexible and a pressure-responsive element which transmits force to either open, close or controls a valve. Monel 400 Globe Valves are used to regulate flow in a piping system. Similar to the function of globe valves, the Monel Plug Valves have a cylindrical or conical plug, that could be to rotate the inside of the valves.
Alloy K500 Gate Valves & Monel UNS N04400 Din 2.4375 Hydraulic Manifold Valves in many sizes
Os-Lok is your superior alternative to Swagelok & Parker A-lok. Similar to Parker, Os-Lok Monel 400 Instrumentation Valves are 100% leak free & used for oil, water, air, and inert gas.
Monel 400 Process Control Valve sizes
- Size: 1/2" to 4" (DN25-DN200)
- Thread: NPT PT BSPP G
- Connection : Welded, Socket, Clamped, Flanged, Threaded
- Pressure Class: PN10/ 16
ASTM A494 M35-1 Ferrule Valve Specification
Buy Monel Oxygen Services Valves at factory price, all types in stock like Monel Globe Valves, Plug Valves etc.
| Media | Oil, Gas & Water | ||||||
| Temperature of Media | Medium Temperature | ||||||
| Pressure & Temperature Limit accordance to ANSI/ASME B16.34 |
|
||||||
| Operation Way | Manual, Electric actuator, Pneumatic | ||||||
| Standard | 3A/ ISO/ DIN/ SMS / ASTM / JIS | ||||||
| Brand Name | OS-LOK | ||||||
| Packaging Details | PVC package, wooden case or as per customer's requirement. | ||||||
| Leakage rate |
|
||||||
| Working pressure | 3000 psig (206 bar) | ||||||
| Seal ring material | PPL, PTFE, PPL Soft Graphite | ||||||
| Manufacturing Process | Forged bar stock | ||||||
| OEM service | Yes | ||||||
| Connection |
|
||||||
| Thread Type |
|
||||||
| Function |
|
||||||
| Flow Rate | .93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv | ||||||
| Applicable Standard |
|
||||||
|
Approvals |
|
||||||
| We also stock & supply |
|
||||||
| Uses & application |
|
||||||
| Our representatives |
We have our sales representatives in folowing locations:
|
||||||
| Port | Mumbai, India | ||||||
Types of Monel Alloy 400 Valves

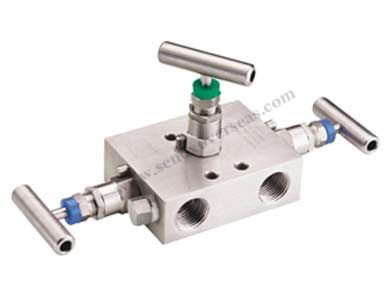

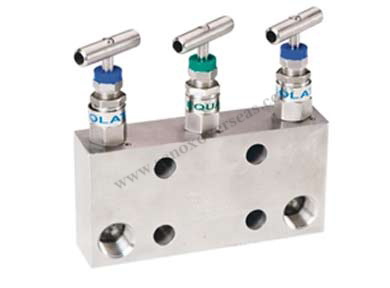

- H type 3 way Monel Alloy 400 valve manifold flanged valve manifold direct control 6000psi
- ASTM A494 Alloy 400 2 way valve manifolds, 2 way manifold valve
- 10000 psi, 400 Monel needle valve swagelok type
- OEM supplier Custom Monel 400 Non Return Valve Vertical (NRV) Check Valve

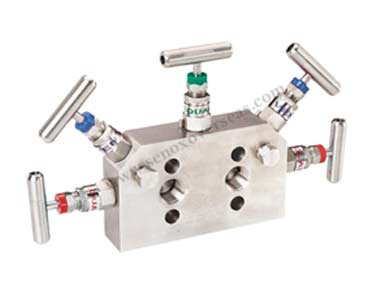

- Swagelok Type Monel Alloy 5-Way Manifolds Valves Up To 413 Bar Pressure
- Pressure measuring instruments ASTM A494 M35-1 relief valve
- High pressure Monel WERKSTOFF NR. 2.4360 solenoid valve 1/4' or 3/8' 0-180bar max
- High pressure ASTM A494 Grade M35-1 non return check valve
- 20000 PSI High Pressure Monel NCF 400 autoclave Needle Valve
- Alloy 400 One-Piece Instrumentation Four Way Valves
- High pressure 3000 psi Monel UNS N04400 double ferrule connection OD end instrument ball valve
- Swagelok type 1/2'' ASTM A494 UNS N04400 High Pressure Instrument Needle Valve

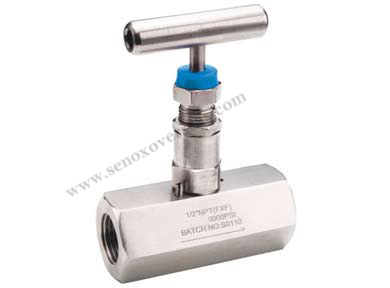

- ASTM A494 Alloy 400 Female Thread Needle Valve/ Integral Bonnet Needle Valve

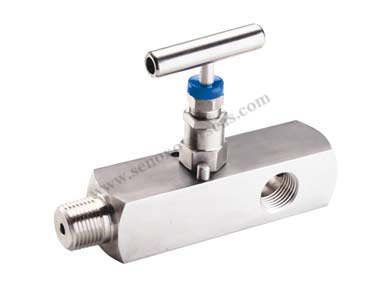

- 400 Monel Instrument General Application Mini High Pressure Needle Valve Bar Stock
- High Performance One Piece 3000 PSI Monel UNS N04400 Instrumentation Three Way Mini Ball Valve
- Gas Supply Monel 400 Instrument Needle Valve
- Non Return Valve ASTM A494 M35-1 Female Thread Instrument Check Valve

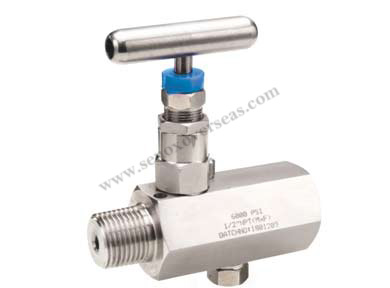

- Nickel Alloy 400 1/4" Bspp /NPT Female Instrument Needle Valve 1/8" 1/2"
Equivalent grades of Monel UNS N04400 Instrument Valve
| GRADE / ALLOY | UNS Number | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
